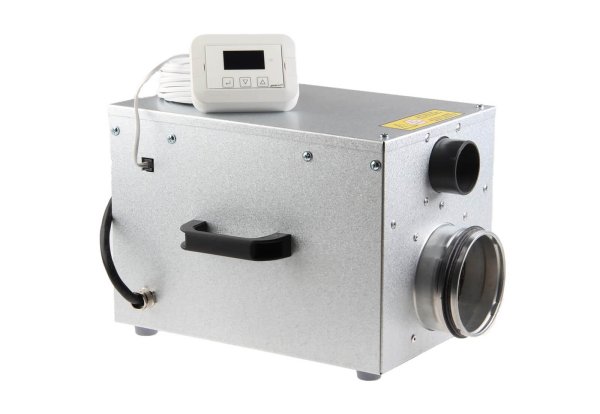

evodry-6p.pdfDehumidifier EvoDry 6P
This item has been discontinued.
Item ID:20101
EAN: 7350072461340
This item is no longer available for sale.
Bottom board EvoDry 4.0Baseboard suitable for dehumidifiers with EvoDry 4.0 control system .Item ID: 240001

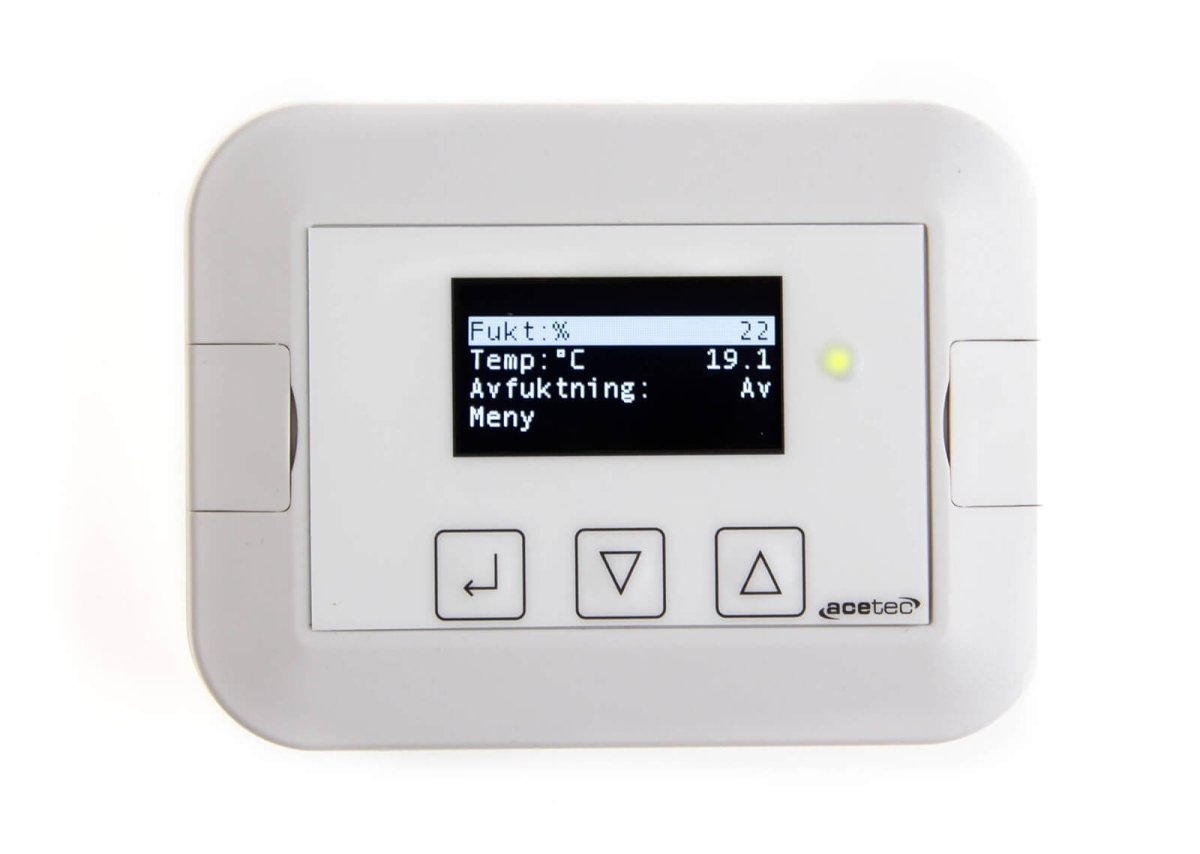

Control panel MPO-01 AvfuktarControl panel suitable for Acetec dehumidifiers with EDC control equipment from version 1.2.0 onward.Item ID: 340159
Fan EvoDry 6 K2E133RA0301Fan Suitable For Acetec Dehumidifiers EvoDry 6H And 6P K2E133RA0301.Item ID: 250012
Filter EvoDry 6 2.0 3-Pack3-pack filter suitable for Acetec dehumidifier EvoDry 6.Item ID: 20509
Modular cable 15mModular cable 15 meters. Fits all our dehumidifiers and ventilation units with modular connector.Item ID: 140000
Outlet unit EvoDry 6/12/18/24Outlet unit suitable for EvoDry 6, 12, 18 and 24 dehumidifiers.Item ID: 299067
Processor board EDP 1.0Processor board suitable for dehumidifiers with EDC-01 control equipment and with control panel MPO-01.Item ID: 240036
PTC-Element B34-96-3 230VPTC-type heating coil. When replacing the heating coil, we recommend replacing all elements in the product. Always disconnect the power when working on your dehumidifier or unit.Item ID: 110021
Wet air hose 51x1500Wet air hose suitable for EvoDry 6, 12, 18 and 24 dehumidifiers.Item ID: 282030
- Replaced by
- 20100
- Warranty
- AG20
- CE
- Yes
- Dehumidifier Type
- Desiccant
- Operating Range (°C)
- -20 - +40
- Suitable up to (m³)
- 100
- Control Equipment
- EDC-01
- Wet Air Flow (m³/h)
- 20
- Dry Air Exhaust Outlet (mm)
- 50
- Dry Air Exhaust Outlet (mm)
- 100
- Dry Air Flow (m³/h)
- 110
- Capacity at 20°C/60% RF (l/24h)
- 7,4
- Capacity up to (l/24h)
- 9,7
- Sound Level (dBA)
- 48
- Hygrostat Setting (%)
- 0-100
- Output, Fan, nom (W)
- 25
- Effect Usage dehumidification (W/h)
- 530
- Connection Voltage (V)
- 1x230V
- Fuse (A)
- 10
- IP rating
- IP21
- Depth (mm)
- 307
- Width (mm)
- 217
- Height (mm)
- 225
- Weight (kg)
- 7,3
- Filter Class
- G4
- Surface/Material
- AluZink
- Corrosion class
- C4
